V7000 Series flow meters combine compact stainless steel bodies and sensitive, stable vortex sensors to produce high-value flow management tools. Proteus’ world-class calibration capability can transform standard meters into instruments of uncommon accuracy, providing the confidence and certainty that the most critical heat-sensitive processes and equipment require.

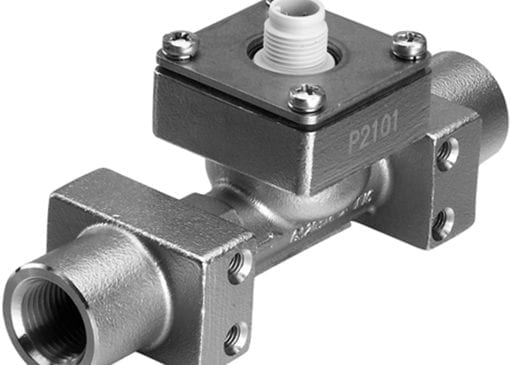

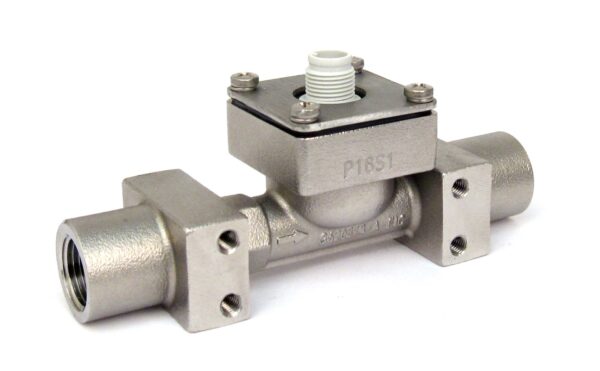

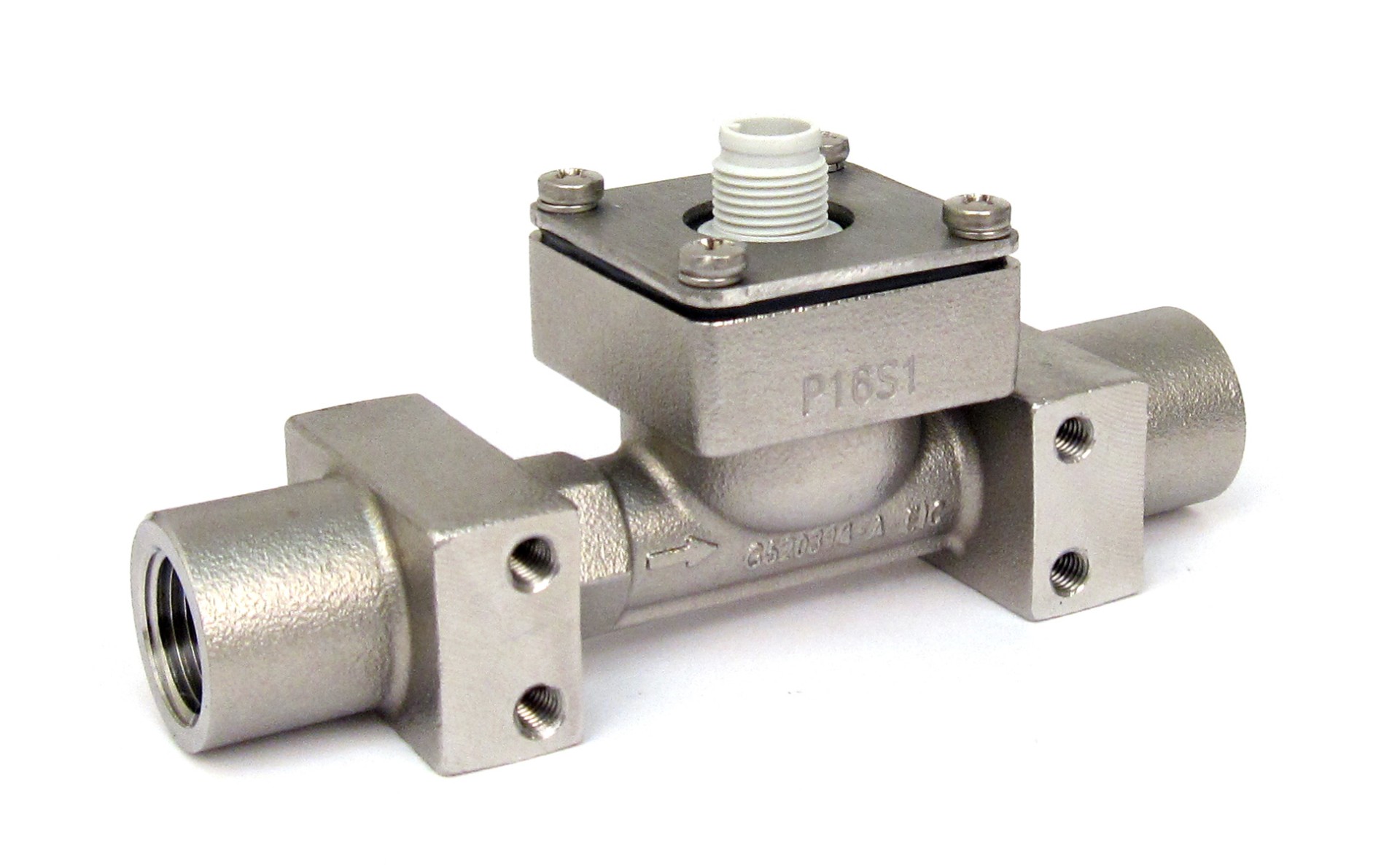

V7000 Series Vortex Flow Meters
V7000 Series Vortex Flow Meters
- Flow ranges from 1.8 to 150 LPM / 0.48 to 40 GPM
- Accuracy of better than 3% of flow range
- Optional temperature measurement from -40 to125 °C / -40 to 257 °F

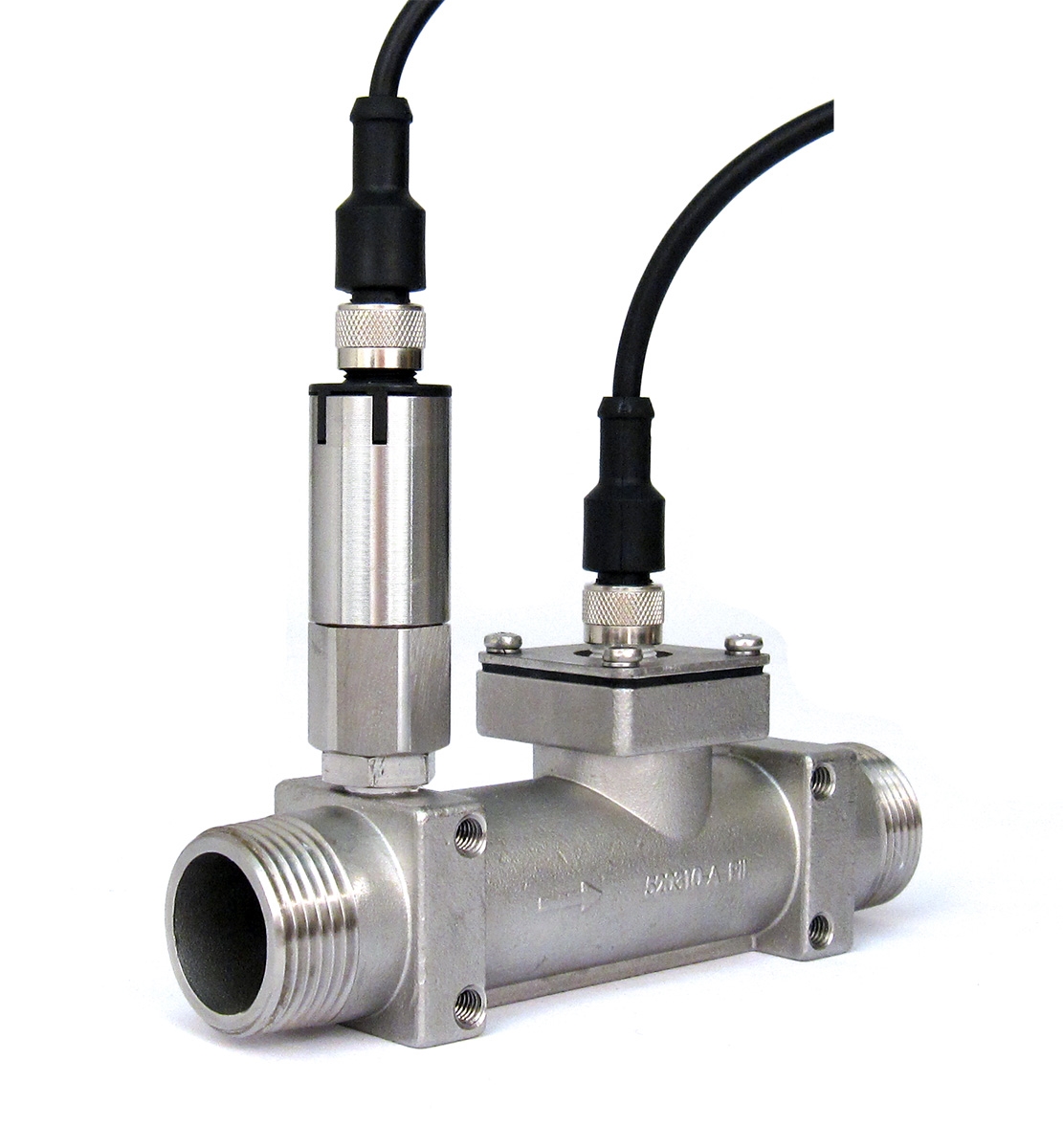

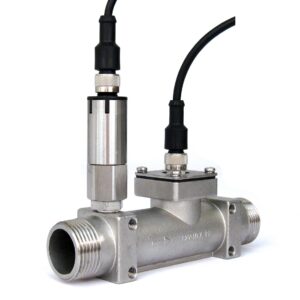

- Optional pressure measurement from 0 to 1200 kPa / 0 to 174 psi
- Pulse, resistance, 0–10 VDC or 4–20 mA outputs
- 3/8″ to 1¼” FNPT, MNPT, or SAE connections
- Rugged stainless steel construction
- Flow response can be calibrated for kinematic viscosities from 0.3 to 12 cSt
- No moving parts – high resistance to suspended solids
- IP65 enclosure
- Customization available for OEMs
Solid Models (available as .STEP files)
(*Please “right” click on the link below to save link to your local file folder)
Technical and Applications Support
(510) 862-8785
Sales and Customer Service Support
(650) 793-0235
Additional information
| Weight | 3 lbs |
|---|---|
| Connection Size and Type | 3/8" FNPT, 1/2" FNPT, 3/4" FNPT, 1" FNPT, 3/4-16 SAE, 1 1/16-12 SAE, 1 5/16-12 SAE, 1¼" MNPT, 3/4" MNPT, 1/2" MNPT, 1" MNPT |
| Flow Range | 1.8-30 LPM / 0.48-7.9 GPM, 3.5-50 LPM / 0.92-13 GPM, 5.0-85 LPM / 1.3-22 GPM, 9.0-150 LPM / 2.4-40 GPM |
| Measurement Options | |
| Output | 0-10 VDC, 4-20 mA, Flow: 0-10 VDC – Temp: 0-10 VDC, Flow: 4-20 mA – Temp: Resistance, Flow: Pulse – Temp: Resistance, Pulse, Flow: 0-10 VDC – Temp: 0-10 VDC – Press: 0-10 VDC |
