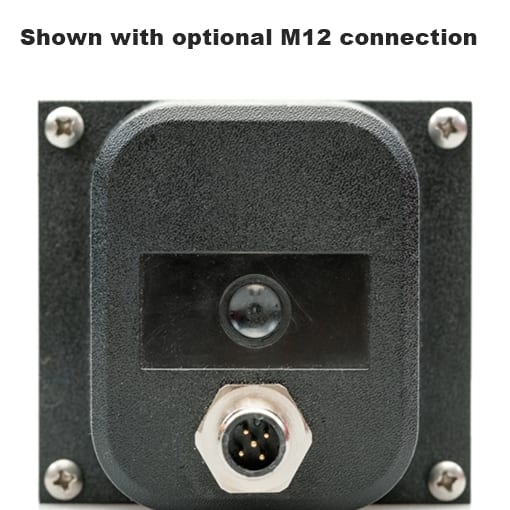

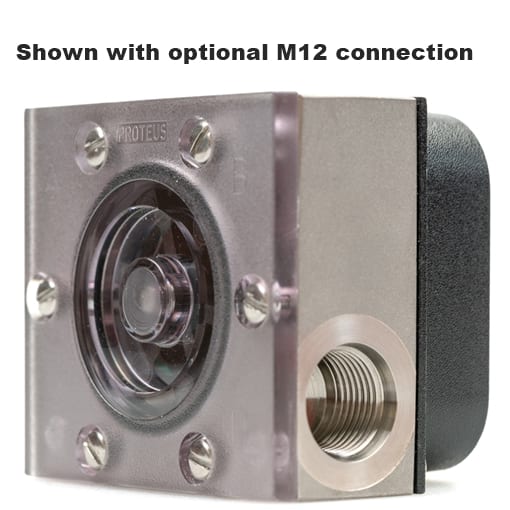

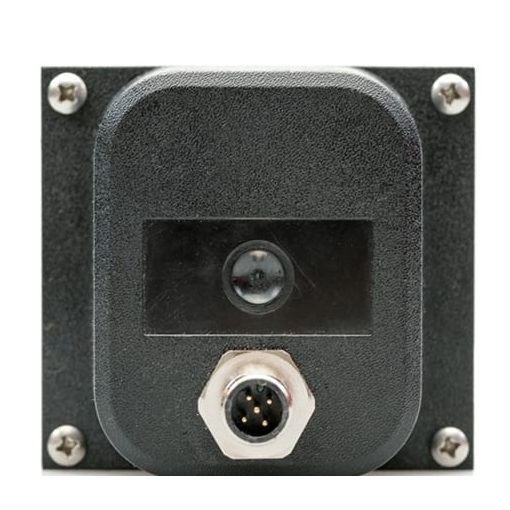

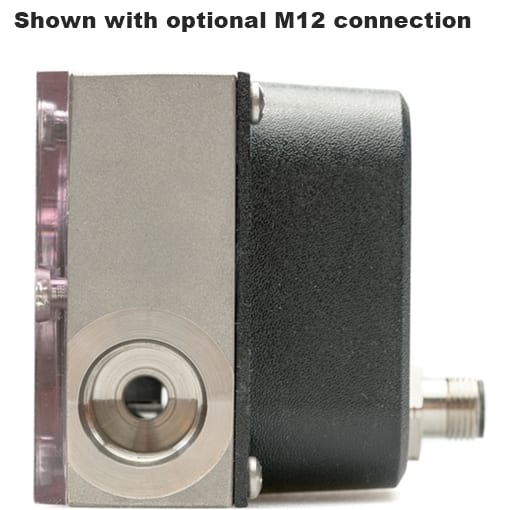

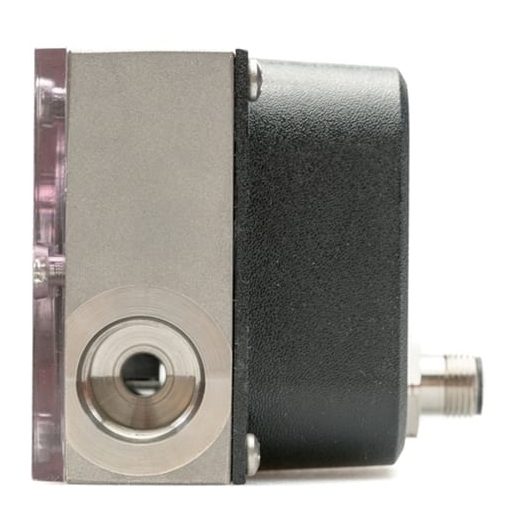

6000 Series Flow Meter

Pulse-output flow meter for easy interfacing with your PLC

  • Flow rates from 0.2 to 227 LPM / 0.06 to 60.0 GPM
  • Pulse output from 5–24 VDC
  • Optional digital display
  • Integrated RTD temperature option
  • Customization available for OEMs
  • 5-year warranty

RoHS_small

Need help finding your product?
Please submit a Flow Product Configuration Form.



Category:

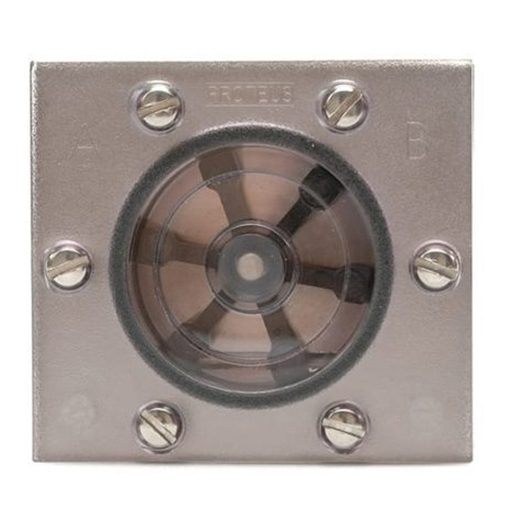

Proteus 6000 Series Flow Meters use a simple turbine principle to generate a pulse output that is directly proportional to the instantaneous flow rate. Magnets in the six-spoke rotor turn a Hall Effect transistor on and off as liquid flows through the sensor. The sensor’s pulse output signal is a square wave with an amplitude of 5–28 VDC depending on the input voltage. The output frequency ranges to 240 Hz at the maximum flow rate for each meter. Both PNP and NPN outputs are provided.

Flow Product Configuration Form**

> Data Sheet
Setup Guide
Technical Reference Manual
Outline and 3D Drawings

Technical and Applications Support

Tech@proteusind.com

(510) 862-8785


Sales and Customer Service Support

Sales@proteusind.com

(650) 793-0235





Price List

Additional information

Weight 3 lbs
Connection Size and Type

1/4" FNPT, 3/8" FNPT, 1/2" FNPT, 3/4" FNPT, 1" FNPT, 9/16-18 SAE, 3/4-16 SAE, 1 1/16-12 SAE, 1 5/16-12 SAE

Flow Range

0.2-2.3 LPM / 0.06-0.6 GPM, 0.4-5.3 LPM / 0.1-1.4 GPM, 0.95–9.5 LPM / 0.25–2.5 GPM, 1.1-17 LPM / 0.3-4.5 GPM, 11-151 LPM / 3.0-40 GPM, 15-151 LPM / 4.0-40 GPM, 15-189 LPM / 4.0-50 GPM, 19-227 LPM / 5.0-60 GPM, 2.3-34 LPM / 0.6-9.0 GPM, 2.3-38 LPM / 0.6-10 GPM, 3.0-22 LPM / 0.8-6.0 GPM, 3.0-38 LPM / 0.8-10 GPM, 4.5-61 LPM / 1.2-16 GPM, 5.3-53 LPM / 1.4-14 GPM, 5.7-72 LPM / 1.5-19 GPM

Flow Body Material

Brass, Celcon, Stainless Steel
