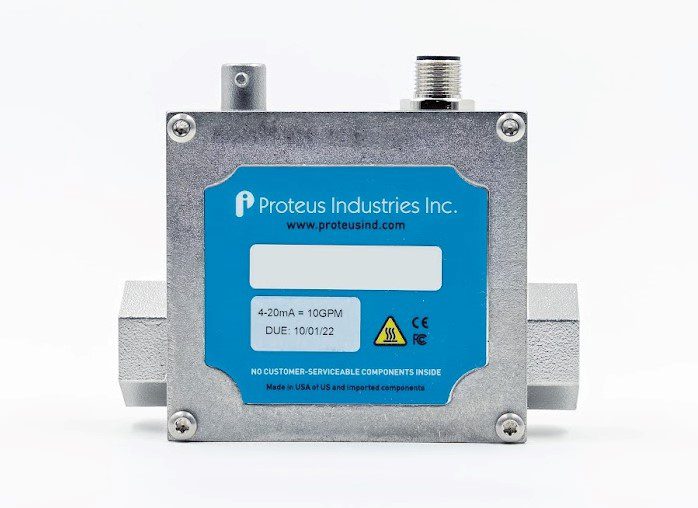

8000EMR Series Flow Meters

EMI- and RFI-Resistant Liquid Flow Meters | 8000EMR Series flow meters
  • Exceptional noise immunity for harsh environments, such as RF power supplies or industrial equipment.
  • Flow ranges from 1.9 to 227 LPM (0.5 to 60 GPM)
  • Liquid temperatures from -40 to 90 °C can be monitored at up to 30 °C ambient temperature
  • Equipped with dry well for optional bayonet-type thermocouple (user-supplied)
  • Accuracy of 3% of flow range
  • Compatible with many advanced heat-transfer fluids
  • Enhanced accuracy and stability from digital signal processing
  • Standard 0–10 VDC or 0–5 VDC, and 4–20 mA outputs
  • On-board relay for redundant interlock, with userspecified, factory-programed trip point
  • Optional custom calibration available to account for viscosity effects of fluid and temperature
  • NEMA 4X / IP66 design with stainless steel flow body, faceplate, and SAE fittings ensures reliable performance in wet environments



Need help finding your product?
Please submit a Flow Product Configuration Form.



Category:

The 8000EMR Series flow meters were designed for use in harsh environments where high levels of electromagnetic or radio-frequency interference (EMI) are present. These EMI-resistant flow meters boast superior immunity and have been laboratory tested for an RF power of 10 V/m to 10 GHz. The robust design of these electromagnetic interference resistant flow meters indicates they can withstand up to 1181 GHz, fully meeting all aspects of the IEC 61000-4-3 industry standard for electromagnetic interference (EMI). This makes the 8000EMR Series an effective electromagnetic flow meter and a durable stainless steel flow meter for demanding applications.

Flow Product Configuration Form*

Data Sheet



8000 EMR Series Solid Models (available as .STEP files)

*Right click on the link below to save link to your local file folder*

08006EMRSA2

08008EMRSA10

08016EMRSA60



Technical and Applications Support

Tech@proteusind.com

(510) 862-8785


Sales and Customer Service Support

Sales@proteusind.com

(650) 793-0235





Price List

Additional information

Weight 3 lbs
Connection Size and Type

1 5/16-12 SAE, 9/16-18 SAE, 3/4-16 SAE

Flow Range

1.9 – 9.5 LPM / 0.5 – 2.5 GPM, 19 – 227 LPM / 5.0 – 60 GPM, 3.0 – 38 LPM / 0.8 – 10 GPM
